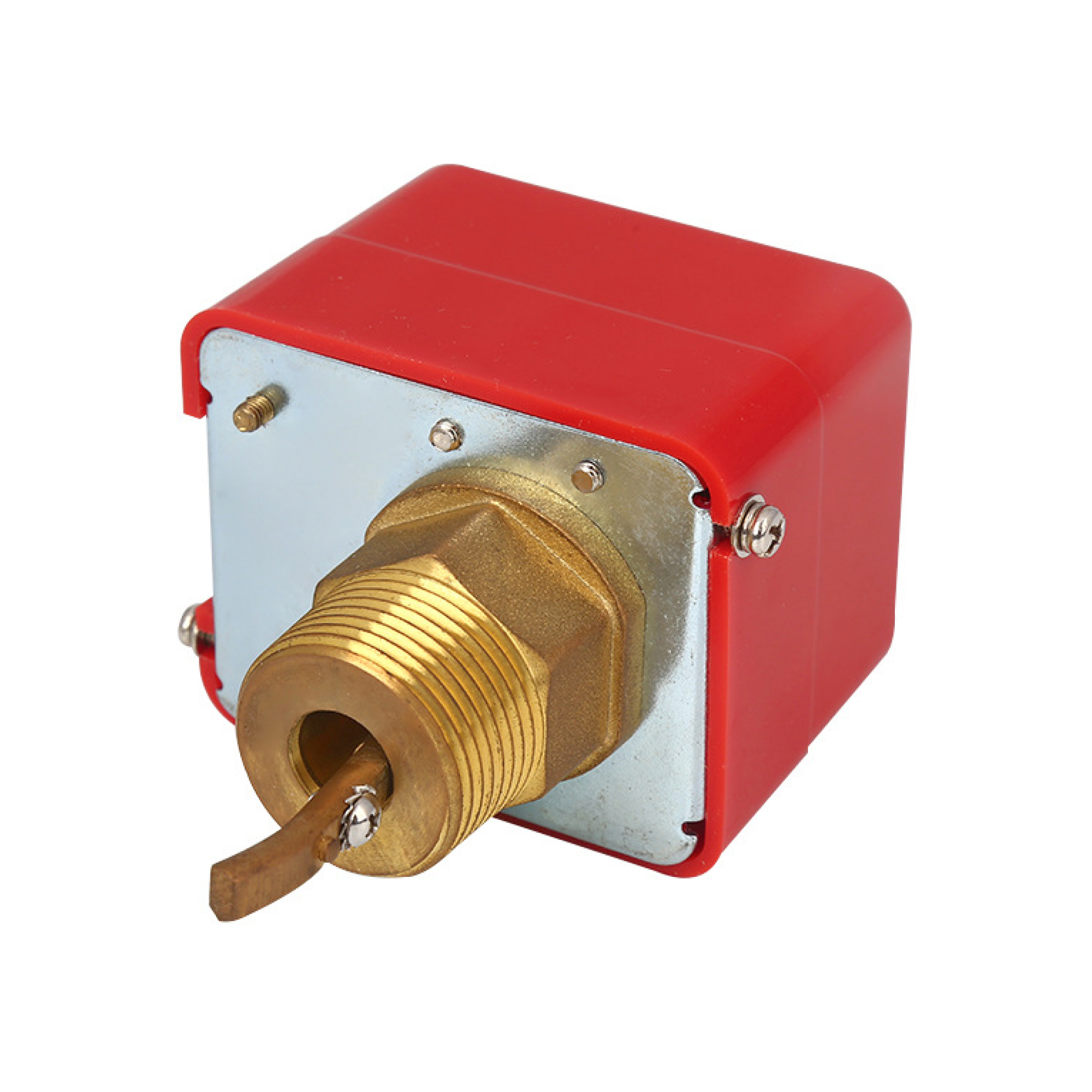

The futuristic WFS01 liquid flow switch is designed to manage changes in liquid flow in pipes, such as water, ethylene glycol, or other non-hazardous liquids. When the liquid flow exceeds or falls below the setting value, the single-pole double-throw contacts (SPDT) can get through one circuit and break the other circuit. The WFS01 liquid flow switch is commonly used for "no flow" protection. WFS01 flow switch can be used for up-to 150mm diameter pipe. Flow setting is adjustable by the user.
Specifications:
- 5 stainless steel paddles to suit pipe diameter up-to 150mm
- Adjustable flow setting
- Flow Temperature : 0-100°C
- Electric Load : AC250V 10A
- The Endurance of Bellows : 5,00,000 cycles
- Max Working Pressure : 10Bar
- Process Connection : 1" NPT M
- Environment Temperature : 0-60°C
